Airborne Systems

B2KH specialises in Airborne Systems and developed a range of rugged displays based on a common module approach to support our Mission Systems equipment. Consultation with ISR customers across a variety of platforms led to the development of the Airborne Displays. We found that many users had slightly different display requirements and it was not a case of ‘one size fits all, and so we were able to approach a solution with a clean sheet of paper. It was obvious from early on that there were many formats of inputs in their systems and so we ensured that we could add modules to accept different source signals. 4 inputs with different viewing options which could be easily selected and another requirement alongside the usual day/night and touch screen option.

The Airborne Display range covers 10.4” through to 21” screen sizes, or larger on request,  and are available with either optically bonded touch screens or toughened glass. Day or Night operation with NVIS compatibility is standard.

Airborne Systems require lightweight, yet robust units and the ability to connect to multiple sources, which are almost by definition, of different standards. B2KH Airborne Displays can be configured at manufacture to interface to these sources and display them as HD. The displays provide for downstream recording of the displayed picture as an SDI stream.

CAMC

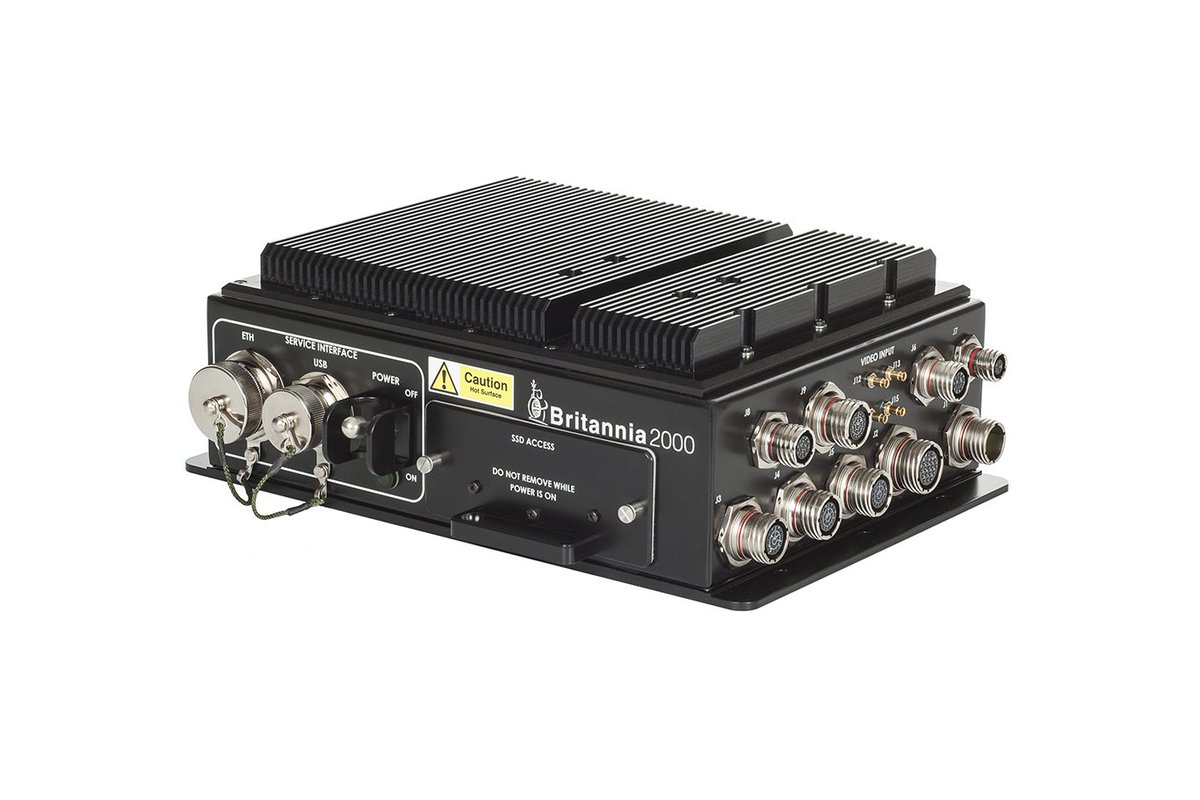

Compact Airborne Mission Computer with built in 4 channel broadcast quality H265 video codecs and also 4K compatible. Interfaces to all known turrets and will run Mapping Systems with real time tracking (MTI). Multiple interfaces for all mission equipment.  Removeable SSD for mapping or sensitive information. Support for 3 displays and built in Gigabit switch. DO 160 certified. Options available.

Compact Airborne Mission Computer

60003 Stanag 3350 RGB-SDI Encoder

Enables legacy turrets to connect in to modern
SDi video systems. DO160 tested

Enables legacy turrets

60004 Fax Modem

Aircraft quality Serial/USB Fax Modem.

Aircraft quality Serial and USB Fax Modem

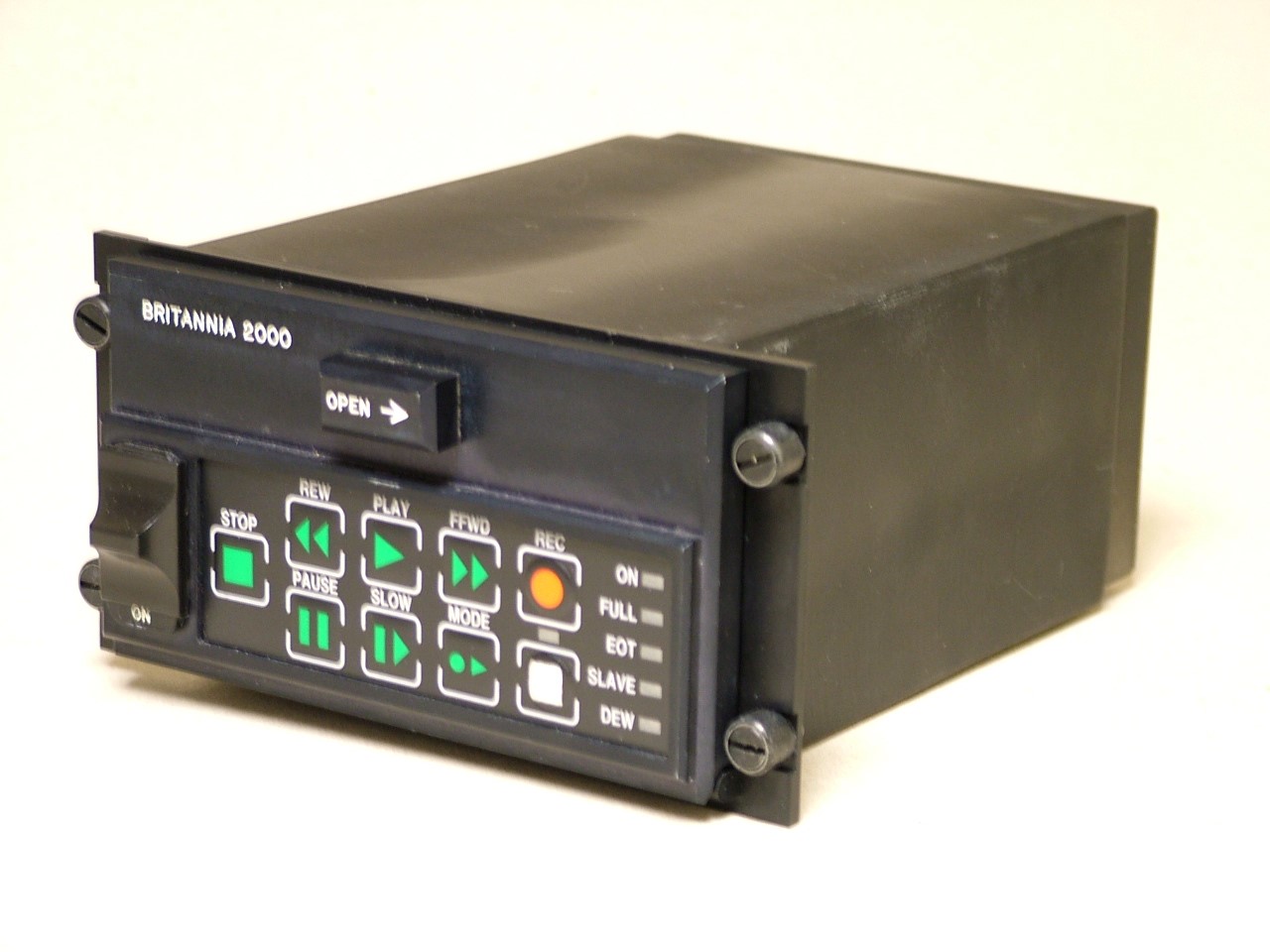

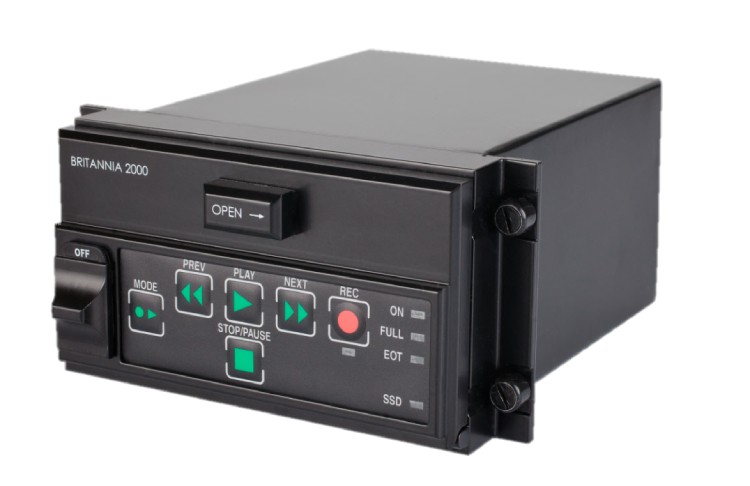

60005 Airborne DVR

Record only airborne video recorder ideal for mission recording and archive. Multiformat SDi input with loop-though. H264 encoding recording to removable SD media. Record times of up to 56 hours of high quality video/audio on a 256Gb SD. Features simple single switch control and can automatically start to record on system power up.

Record only airborne video recorder

2915C 40w Video Downlink

40W analogue video downlink transmitter. Remote frequency control. C Band L and S band upon request . Options available

40W analogue video downlink transmitter

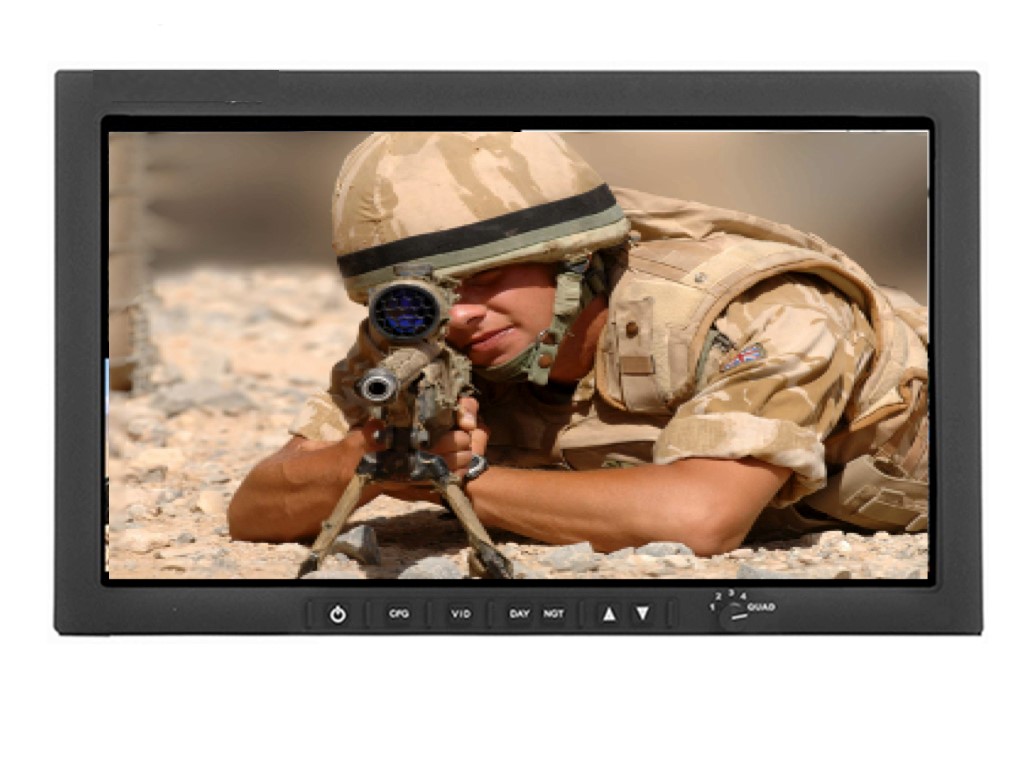

60007 17.3” Airborne Display NVIS

17.3” HDTV colour display with optically bonded capacitive touch screen display or tempered AG glass panel, NVIS compatibility and Day/night modes.
4 HD SDI inputs as standard complete with multi-view screen display options selected by rotary switch. Display can be configured during manufacture for combinations of SDI, HMDI and composite video inputs

VESA mount as standard with rack kit available. Other screen sizes available

HDTV colour display with touch screen
